EDGE HARDENED
High life and die-life due to extreme hard cutting edge in combination with a soft body hardness for optimized working on automatic bending machines.

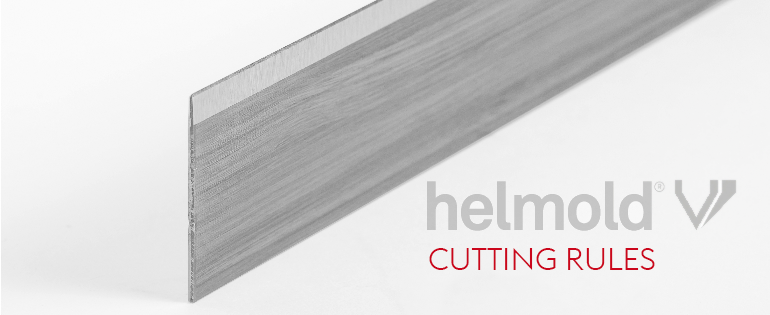

Helmold Lazer Blade
Lazer Blade is an edge hardened rule that offers a softer body with a hardened-edge making this very attractive for many applications. This would be commonly used in packaging, folding carton and kiss-cut applications.
| Body Hardness | Body 34 RC + Edge 57 RC |
| Bendability | Will take an .012-R/2 point |
| Thickness | 1.5 pt / 2 pt / 3 pt / 4 pt |
| Heights | .500" thru 937" |
| Bevel Finish | Shaved edge in 42°, 53° and 60° |
| Buffed Edge in 42°, 53° and 60° | |
| Ground Edge in 60° | |
| Bevel Angles | 42°, 53°, 60° |
Helmold Lazer Blade H
Lazer Blade H has all the characteristics of Lazer Blade with increased body hardness
for more durable and abrasive applications.
for more durable and abrasive applications.
| Body Hardness | Body 45 RC + Edge 57 RC |
| Bendability | Will take an .016-R/2 point |
| Thickness | 1.5 pt / 2 pt / 4 pt |
| Heights | .500" thru 2.000" |
| Bevel Finish | Shaved edge in 42°, 53° and 60° |
| Buffed Edge in 42°, 53° and 60° | |
| Ground Edge in 60° | |
| Bevel Angles | 42°, 53°, 60° |
About Helmold
Helmold is part of the voestalpine Precision Strip Group, the world market leader in flatbed steel rules. On the one hand it benefits from the strip steel production know-how of the group, and on the other hand, from the finest raw material available. Therefore Helmold is the specialist for high customer requirements when it comes to unique packaging applications.
Helmold is part of the voestalpine Precision Strip Group, the world market leader in flatbed steel rules. On the one hand it benefits from the strip steel production know-how of the group, and on the other hand, from the finest raw material available. Therefore Helmold is the specialist for high customer requirements when it comes to unique packaging applications.
