CREASING RULES
The traditional profile with a radiused top and flat bottom as well as dual radiused profile.
This shape allowes either edge to be used for scoring, will not splitter wood, and produces well defined scores while inhibiting board cracking.
Helmold stocks all standard creasing rule heights, and can custom manufacture virtually any size quickly. Our creasing rule is designed for all applications in the packaging and folding carton industry. The smooth face and quality tolerance makes this a selection for all applications.
Crease Standard Heights (in.)
Available in cutting lengths or coils
| 1 1/2 & 2 pt | 3 pt | 4 pt |
| .885 .895 .900 | .890 .895 | .840 .860 |
| .902 .905 .906 | .900 .905 | .875 .890 |
| .907.908 .910 | .906 .907 | .895 .900 |
| .912 .914 .915 | .910 .912 | .905 .906 |
| .916 .917 .918 | .915 .918 | .907 .910 |
| .920 .921 .922 | .923 .930 | .912 .918 |
| .923 .924 .925 | .937 .950 | .923 .937 |
| .926 .927 .937 | .960 .970 | .940 |
Other heights and profiles are available.
Contact us for details.
Click to enlarge.

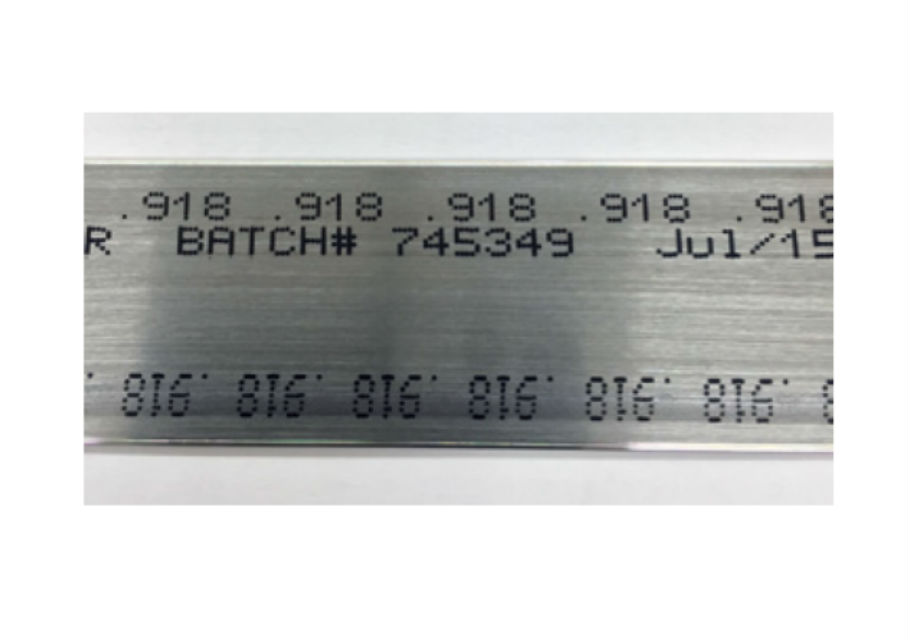

All double round crease is printed top and bottom so the printing can always be read.
HELMOLD CREASING RULE
Helmold creasing rule is designed for all applications in the packaging and folding carton industry.
The smooth face and quality tolerances make this a selection for all applications.
| Body Hardness | 1.5 pt = 45 RC |
| 2 pt + 3 pt = 40 RC | |
| 4 pt + 6 pt = 35 RC | |
| Bendability | Straight work only |
| Thickness | 1.5 pt / 2 pt / 3 pt / 4 pt / 6 pt |
| Heights | 1.5 pt = .500" thru 1.500" |
| 2 pt + 3 pt = .500" thru 2.000" | |
| 4 pt = .500" thru 2.000" | |
| 6 pt = .500" thru 1.250" | |
| Bevel Finish | single round (SR), double round (DR) |
About Helmold
Helmold is part of the voestalpine Precision Strip Group, the world market leader in flatbed steel rules. On the one hand it benefits from the strip steel production know-how of the group, and on the other hand, from the finest raw material available. Therefore Helmold is the specialist for high customer requirements when it comes to unique packaging applications.
